THE SYSTEM

We use a bottom weighted track system . Each door has a recessed bottom guide and uses a bottom-weighted track system, which rebates a spring-loaded wheel to the underside of the door, offering great practical advantages.

It means the wider the door, the greater the stability (the converse of most top weighted

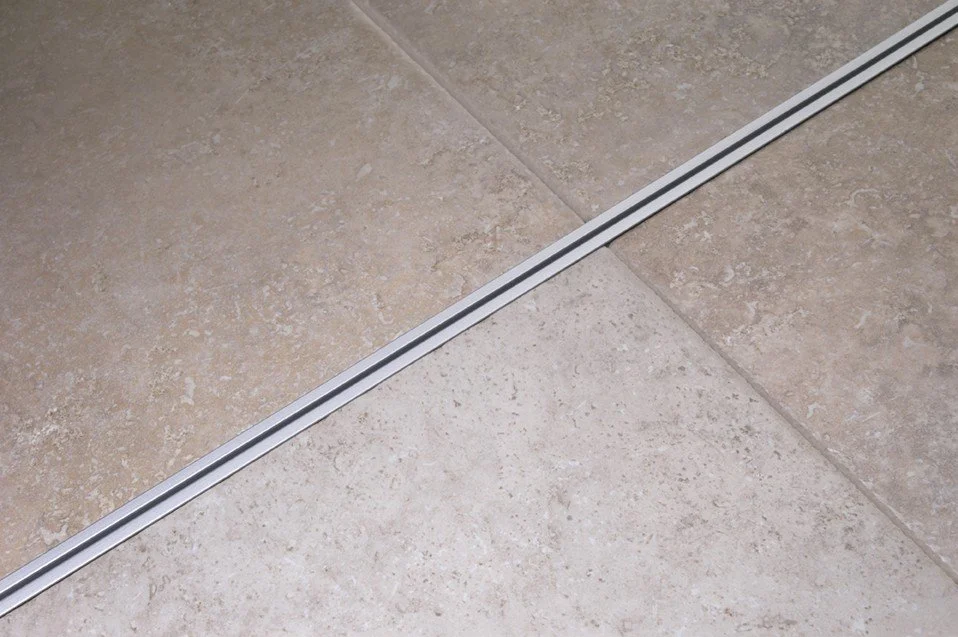

systems). The top track acts as a guide only, thus allowing installation in placeswith problematic ceiling construction. The bottom track may be surface mounted and, being only 6mm does not cause an obstruction. It may also be recessed intocarpet, laminate, hardwood floors or even marble and tiling. The top and bottom

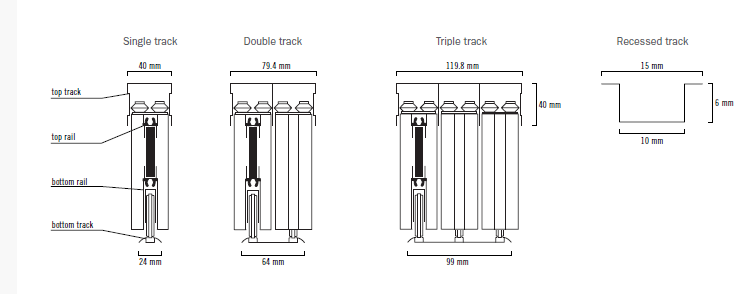

tracks are either single, double or triple.

** For coloured glass infills the maximum width is 1070mm unless midrails are used.

** Aluminium doors may only be made over 2440mm height when midrails are used.

• Larger sizes may be available - please ask for details from our technical department.

• All solid wood framed doors are supplied as standard with brushed pile strip on both sides.

•Our Timber sliding doors are not recommended to be used as hinged doors.
